Clamping Mechanisms

Contribute to the Best Possible Pressruns

The clamping area between the printing press cylinder and carbon fiber adapter can decisively influence the flexographic printing image, the setup times when changing adapters, and process reliability of the entire system.

Let’s look into why.

When the operator is changing jobs in the flexo printing machine, he maneuvers the clamping screw of a hydraulic cylinder—usually without knowing it. The hydraulic cylinder is a high precision clamping mechanism. Externally hard to recognize, the clamping screw moves the expansion piston located internally in the printing cylinder, which compresses hydraulic oil in the expansion chamber.

maintenanceThe increase in pressure in the chamber causes an expansion of the sleeve on the base body. This procedure precisely clamps the carbon fiber adapter within its inner clamping surface. To ensure a perfect run, both the clamping surface of the cylinder and the clamping diameter of the carbon fiber adapter is precision ground.

Hydraulic expansion solutions, such as those used in flexo printing presses, as well as in machine tools, are among the most precise clamping technology available. They are always used when frequent changing procedures and minimum changeover have to be permanently maintained with high precision.

The oil-filled expansion chamber and the expansion sleeve, when in operation in the printing process, act to dampen vibration and absorb peak load. Assuming the system does not get dirty or damaged, it ensures—even after several thousand cycles—perfect concentricity, which is the basis for flexo to achieve a clean print and high process reliability.



Force & Torque

By the time carbon fiber adapters have to be removed from the printing cylinders by being struck with rubber hammers or blocks of wood, alarm bells should be ringing in the head of the operating manager,” says Oliver Pfeiffer, managing director at SWT Services. “Properly adjusted, cleaned and maintained, the adapter has to fit on to the printing cylinder very easily.“ A sluggish adapter exchange is almost always an indication of problems in the entire system.

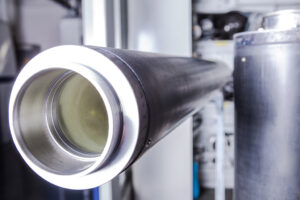

CFRP adapter after cleaning

Cleaned, moped and measured, the adapters can be easily joined and clamped with high precision.

The reasons differ: frequent job changes under time pressure, improper operation and surrounding influences and a host of other factors that lead partly to enormous loads for the high precision interface. In a gradual process:

  • Dirt and surface damages build on the clamping cylinder causing clamping diameter changes
  • Deformation damage happens to the expansion parts
  • Oil leakage occurs in the clamping device

The impact can be wide ranging: If the clamping force is too low, for example because the expansion rate of the cylinder size is not sufficient, the torque cannot completely be transferred to the adapter. This affects the printed image. Errors occur. Reproducibility decreases.

Sometimes, there is even a complete machine failure, all because the clamping surfaces are soiled or damage. Outside influences, such as high temperatures in the press or in the hall, can affect the clamping force and concentricity of the printing cylinders.

Again, a sluggish adapter exchange is almost always an indication of problems in the entire system. Reasons differ, but include: frequent job changes under time pressure, improper operation and surrounding influences and a host of other factors that lead to enormous loads for the high precision interface.



Maintenance & Evaluation

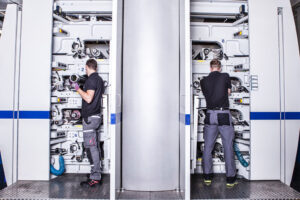

high-precision overall system

Using high-precision measuring instruments, service specialists can evaluate the complete clamping system on-site at the machine.

Pfeiffer recommends regular servicing and maintenance in a cycle of 12 months. By using high-precision measuring instruments, service specialists evaluate the complete clamping system on-site at the machine. Both, the absolute dimension of the clamping diameter and the clamping cylinder, as well as the roundness and expansion rate of the clamping cylinder, are measured and checked using a special calculation program to compare the values of the adapter and clamping cylinder. Evaluation of the entire system ensures reliable and precise clamping of the adapter.

To permanently achieve the full potential of the clamping device, reduce unplanned machine downtime to a minimum and prevent damages to operators and machine; systematic clamping device monitoring and checking is essential. Using advanced technology, specialists can accurately balance toolholders, grinding wheels, crankshafts, rotors, impellers, pulleys, flanges, tools, and more—to nearly guarantee a perfect run.
