It’s equipped with a PC, keyboard, mouse and monitor. The big screen enables you a fast input of tool data and all the comfort of a graphical user interface – you just balance faster! In addition the software of the machine offers the possibility to correct the unbalance with the help of a milling program what is very common in practice to correct the unbalance.

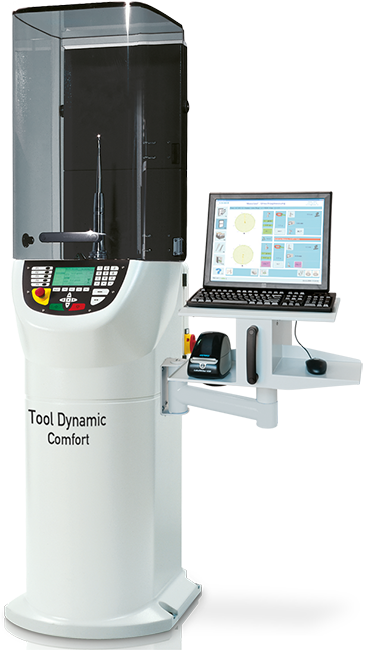

Tool Dynamic TD Comfort
For ambitious users
If you want to use the Tool Dynamic frequently and keep the balancing time as short as possible, you should decide on the Tool Dynamic TD Comfort machine.
Characteristics identical to TD Economic Plus
User interface
Integrated user interface for easy handling of
the machine
Optical indexing help
Indication of the exact spindle angle position on display
Laser marking
Indicates the position of unbalance and correction with a laser
Drilling radial
Balancing by drilling radially
Software for compensation with balancing rings
Balancing by rings or other movable weights
Index balancing
Compensation of measuring errors by index balancing (2 measuring runs, indexing angle 180°)
Balancing with spindle compensation
Quick and precise measurement of repetition parts (single measuring run)
Balancing in 1 plane
Measuring and compensation of unbalance in 1 plane (static)
Balancing in 2 planes
Measuring and compensation of unbalance in 2 planes (dynamic unbalance)
Fixed components
Enables balancing at predefined positions, e. g. with balancing screws
Automatic indexing
Turns the spindle on the selected angle position and simplifies exact positioning of spindle
Rack for accessories
Storage rack with two integrated drawers for balancing adapters and further accessories
Deutsch/English/Français/Italiano/Español
Languages for user interface
Additional characteristics of the Tool Dynamic TD Comfort
Print label
Print balancing result on label
Milling program
Milling program allows correction of unbalance via milling
Balancing software TDC 4.0
New software with user-friendly graphical interface and touchscreen-control
Screen holder
Comfortable tray to place PC-screen, keyboard and mouse
TFT screen
Package for comfortable usage via keyboard for integrated PC (includes TFT screen, keyboard, mouse)
Technical details TD Comfort
| Dimensions (WxHxD)/[mm] | 500 × 1500 × 820 |
| Weight [kg] | 450 |
| Spindle speed [rpm] | 300 – 1100 |
| Measuring accuracy [gmm] | < 0,5 |
| Power requirements [V/Hz] | 230 / 50 – 60 |
| Power usage [kW] | 0,4 |
| Compressed air [bar] | 6 |
| max. tool length [mm] | 400 |
| optional tool length [mm] | 700 |
| max. tool diameter [mm] | 380 |
| optional tool diameter [mm] | 400/425 |
| max. tool weight [kg] | 30 |
